RedLion

Red Lion RL-SPRK200 230 Volt, 2 HP, 76 GPM Cast Iron Sprinkler/Irrigation Pump with Thermoplastic Impeller, Red, 97102001

Red Lion RL-SPRK200 230 Volt, 2 HP, 76 GPM Cast Iron Sprinkler/Irrigation Pump with Thermoplastic Impeller, Red, 97102001

Regular price $674.99 USD
Regular price $674.99 USD Sale price
Shipping calculated at checkout.

About This

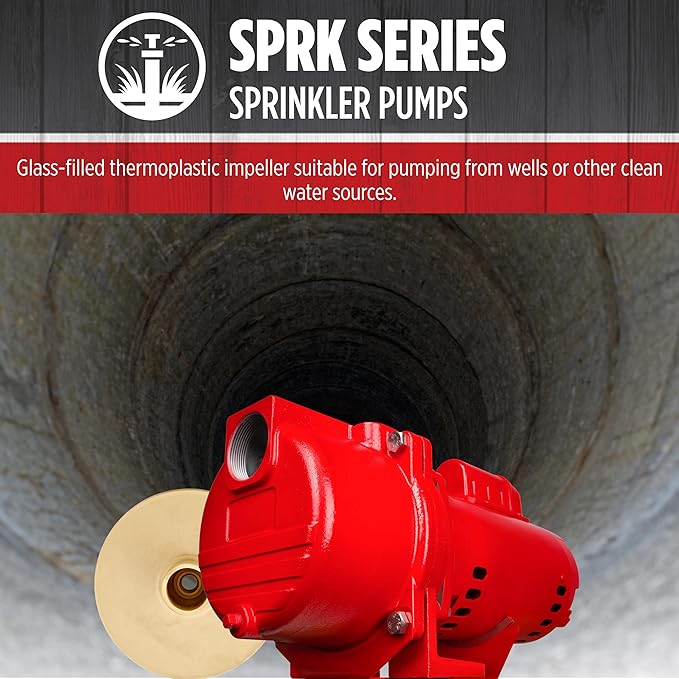

  • BUILT TO LAST: Rugged cast iron pump housing and glass-filled thermoplastic impeller for well water and lake water
  • MOTOR SPECIFICATIONS: 230 VOLTS, 10.9 running Amps, Capacitor-run PSC design, 7332 locked rotor watts, thermally protected, CSA listed in the US and Canada

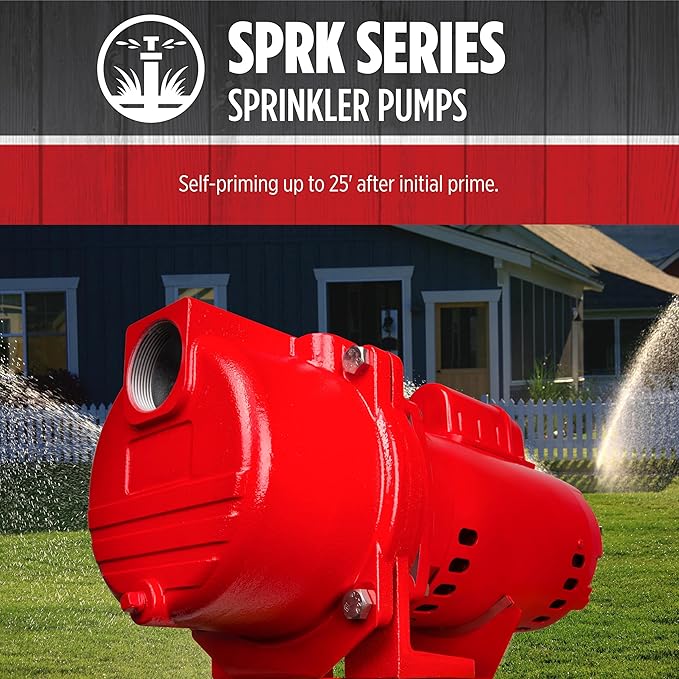

  • ONE-TIME PRIMING: No additional priming is required after initial fill; follow the priming instructions in the owner's manual

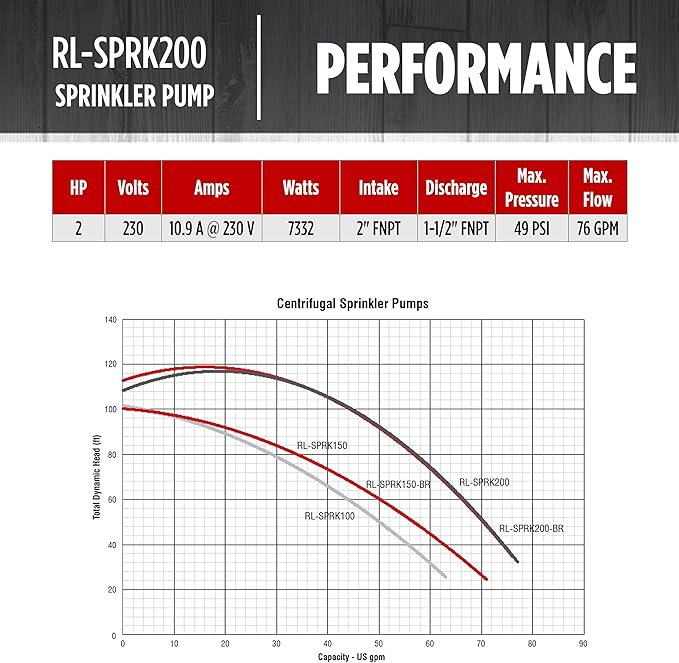

  • UP TO 76 GPM at 10 PSI: 64 GPM at 30 PSI - can handle up to 21 sprinkler heads with 1/2-inch fittings or 10 sprinkler heads with 3/4-inch fittings in each zone

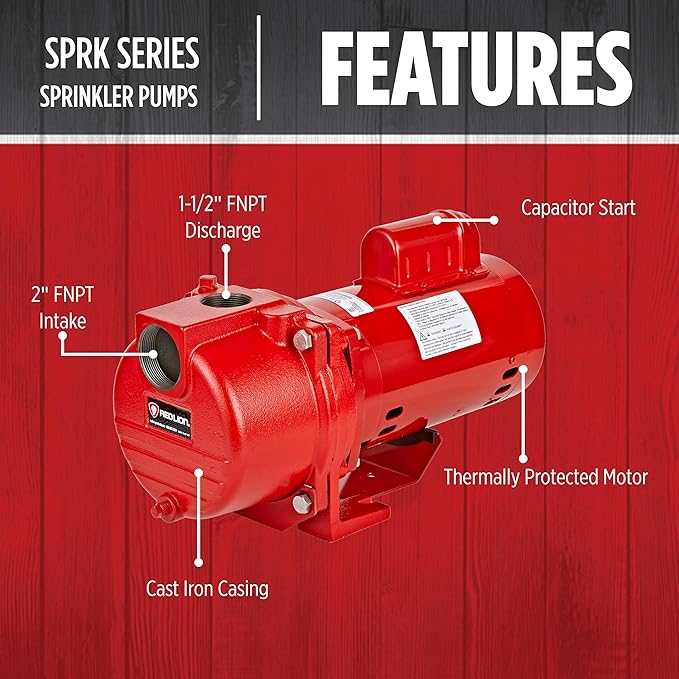

  • SPECIFICATIONS: 2.0 HP, 230 Volts, 2-inch Female NPT threaded intake; 1.5-inch Female NPT threaded discharge, Max pressure 49 PSI

Overview

  • Brand : Red Lion
  • Color : Red
  • Material : Cast Iron, Thermoplastic
  • Style : 2 HP, Thermoplastic Impeller, 230 Volt only

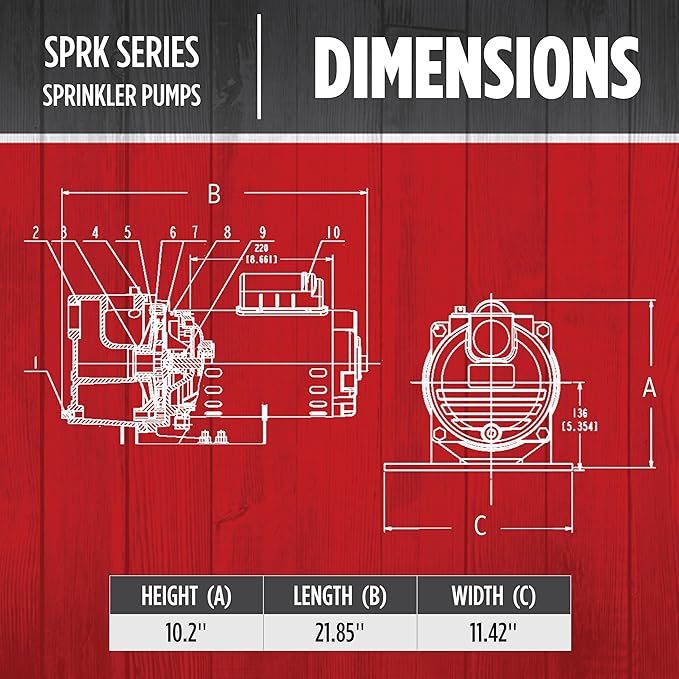

  • Product Dimensions : 21.85"L x 11.42"W x 10.2"H
  • Power Source : Corded Electric
  • Item Weight : 63 Pounds
  • Maximum Flow Rate : 76 Gallons Per Minute
  • Maximum Lifting Height : 25 Feet
  • Voltage : 230 Volts
